LRS-100-12 Mean Well Power Supply 12 VDC 8.5A
875 EGP
Brand: Mean Well
Model: LRS-100-12
input:90-264 VAC
output: 12 VDC 8.5A
Non-PFC, most economical models
Ultra compact and 1U low profile
Dimensions :129*97*30mm (L*W*H)
weight: 340 g
No load power consumption: 0.2W~0.75W
5G vibration, 70℃ operations
Operating altitude up to 5000 meters
Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL62368-1 and GB4943
Brand: Mean Well
Model: LRS-100-12
input:90-264 VAC
output: 12 VDC 8.5A
Non-PFC, most economical models
Ultra compact and 1U low profile
Dimensions :129*97*30mm (L*W*H)
weight: 340 g
No load power consumption: 0.2W~0.75W
5G vibration, 70℃ operations
Operating altitude up to 5000 meters
Complete safety certificates: IEC/EN60335-1(PD3), IEC/EN61558-1, -2-16; IEC/EN/UL62368-1 and GB4943
| Weight | 340 g |
|---|---|
| Dimensions | 12.9 × 9.7 × 3 cm |
Related products
-

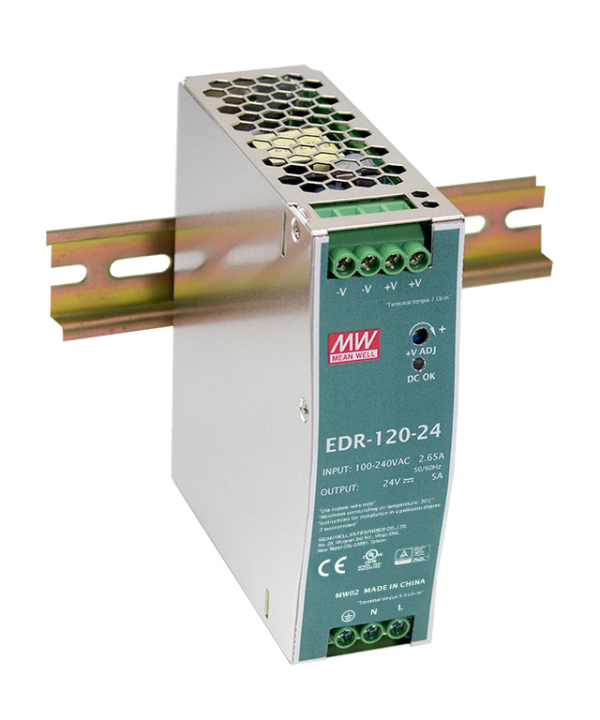

Add to cartBrand: Mean Well
